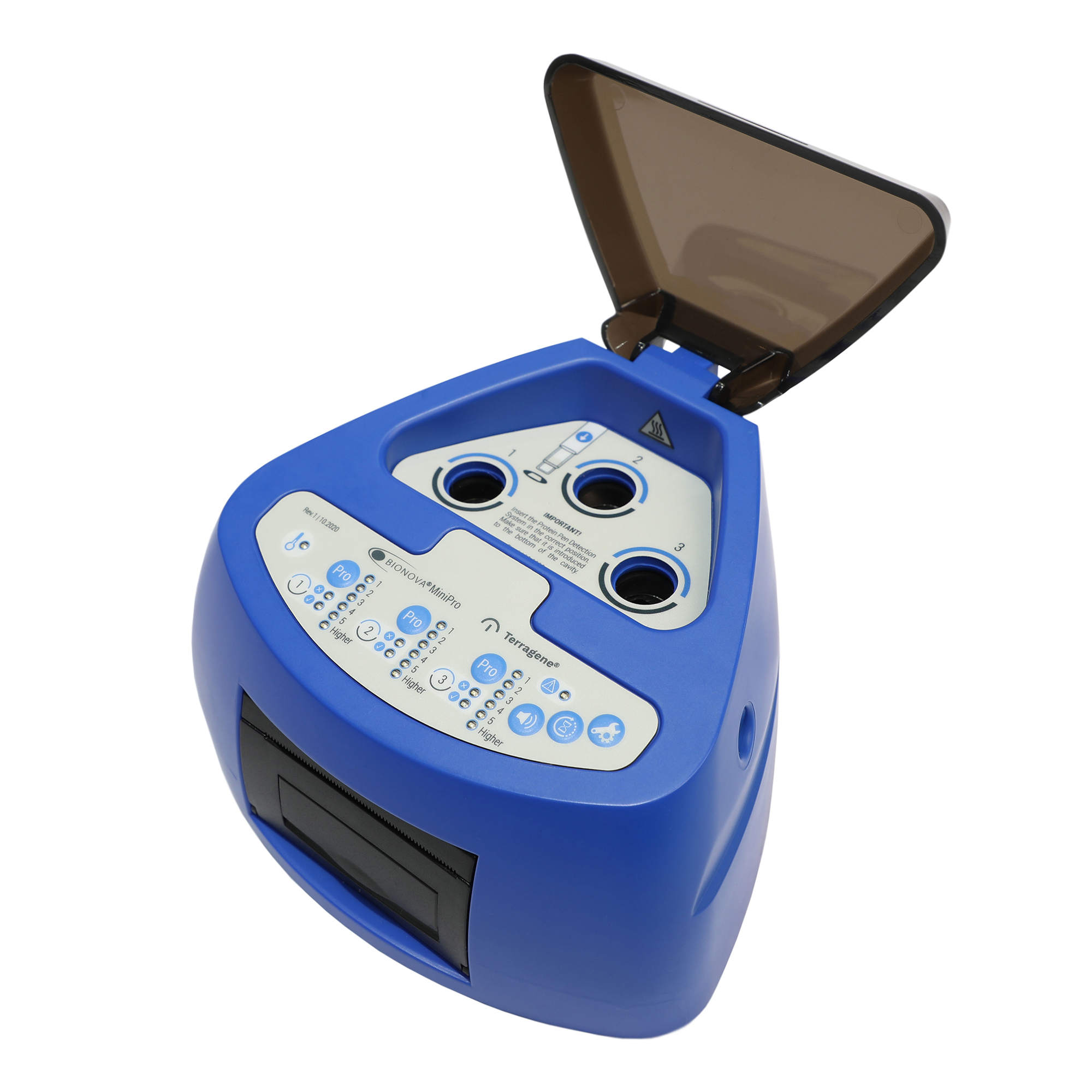

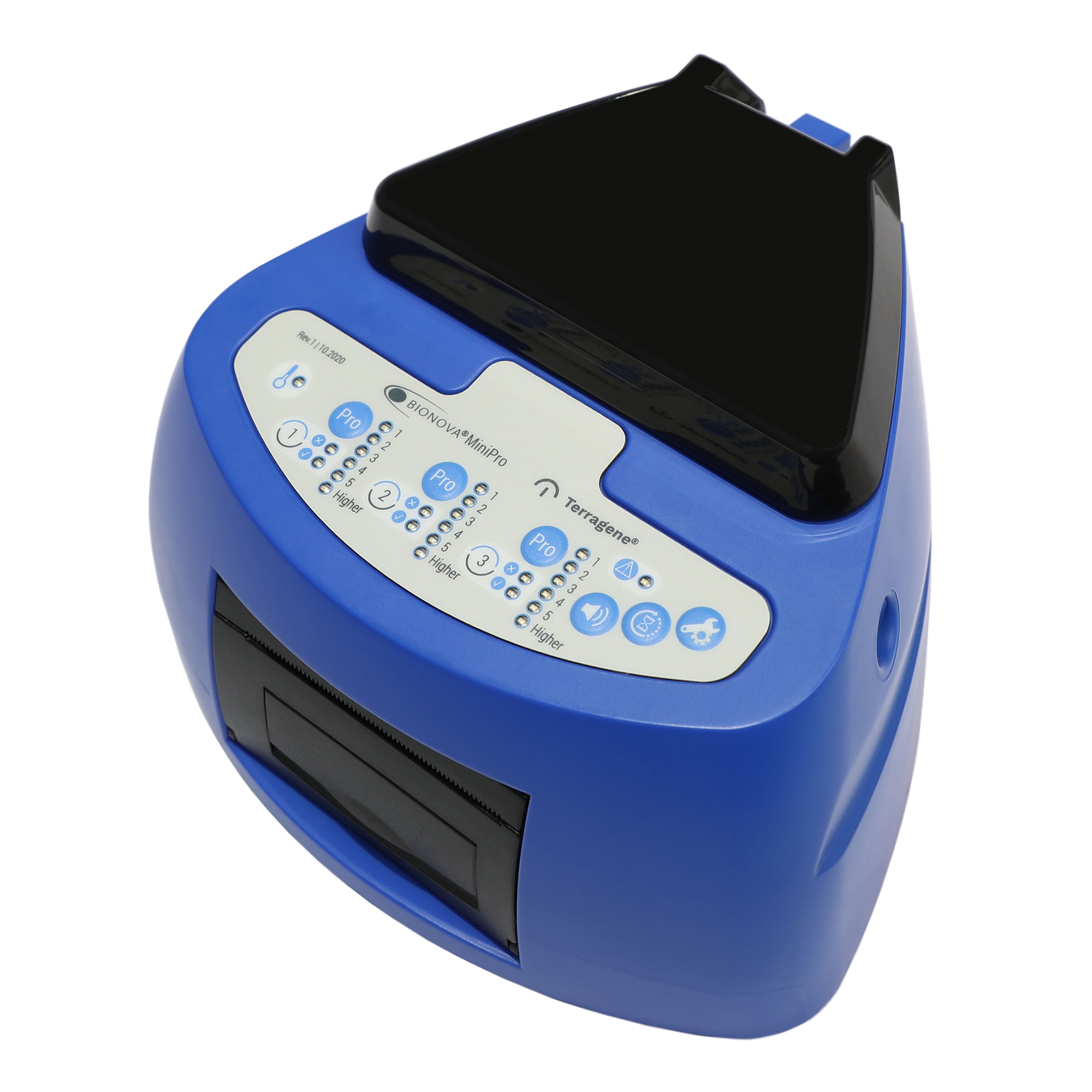

MiniPro Auto-Reader Incubator

Usage

The MiniPro Auto-Reader Incubator is specifically designed to perform both incubation and quantitative analysis for hygiene monitoring. Primarily, it supports pen systems used for the sensitive detection of surface proteins and allergens, including the Chemdye® PRO1 MICRO system. Samples are incubated at a controlled temperature of 60 °C for a duration of 4 minutes, ensuring optimal reaction conditions to produce accurate and reliable measurement results.

This device enables the simultaneous processing and reading of up to three indicators, making it highly efficient for workload management in hygiene monitoring workflows. The automatic reading capabilities and integrated printer system facilitate real-time data acquisition and documentation, streamlining laboratory processes and supporting quality control and compliance.

Applicable Regulation

The MiniPro is manufactured following comprehensive Quality Management System standards (ISO 13485:2016/NS-EN) and meets electrical safety and environmental directives, ensuring safe and compliant operation.

Characteristics

• Capable of incubating and reading three hygiene indicator pens simultaneously
• Provides an orifice for an external thermometer for precise temperature monitoring
• Equipped with a built-in top cover and USB interface to transfer results to PC via dedicated Readout and Traceability software
• Includes a thermal printer for immediate paper output of results
• Features sound alarms signaling key operational events
• Firmware is user-updatable to enhance functionality
• Compact dimensions of 102 mm (height) x 156 mm (width) x 146 mm (depth)
• Voltage range covers 100 – 240 V AC with power consumption of 28 W and frequency 50-60 Hz

Environmental Conditions During Manufacture

• Temperature: 15-35 °C
• Relative Humidity: 35-85%

Storage and Transport Conditions

• Recommended storage temperature: 5-40 °C, RH 30-80%, protected from light
• Transport should adhere to similar conditions, avoiding damage by using reinforced packaging
• Acceptable transport temperature excursions: 2-5 °C and 40-65 °C for no longer than seven days

Shelf Life

• 5 years

Packing

• Supplied as a single unit in a labeled box including product code, storage conditions, and manufacturer data

Labelling

• Product and box labels feature product code, batch number, serial number, barcode, and storage requirements

Possible Target Markets

• Healthcare
• Food industry
• Pharmaceutical sector
• Medical device industry

Other Information

• The incubator’s three reading positions each have dedicated buttons for easy program selection and initiation
• Includes an automatic reading system and printer to record and print data efficiently
• Additional buttons allow reprinting of the last three results and checking the remaining incubation time

Precautions

• Avoid spilling any liquids into the device
• Do not submerge the incubator
• Designed strictly for indoor use
• Disconnect power before cleaning
• Use only non-abrasive, non-corrosive cleaning agents
• Ensure the incubator is connected to an adequately rated power source
